Directional Yagi
DGY900-6
6 Element Yagi, 12 dBi
12 dBi700-960 MHz150 W
Remote Telemetry · Rural 4G · SCADA
— Application

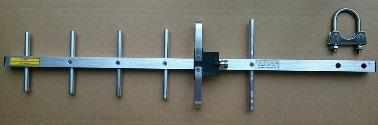

The DGY900-6 is a 6 element Yagi for sites where the nearest tower is a long way off. It focuses 12 dBi of gain toward the tower and rejects signal from behind with a 14 dB front to back ratio. It is built from 6061 anodised aluminium with a stainless mast clamp and ships with 10 m of double-shielded ALSR195 terminated N male and SMA male.
— Technical Specifications
RF Performance
| Frequency | 700-960 MHz (factory tuned to 850 MHz, retunable on request) |
| Gain | 12 dBi |
| Front to back ratio | 14 dB |
| VSWR | < 1.5:1 |
| Impedance | 50 Ohm |
| Power rating | 150 W |
Mechanical
| Boom length | 690 mm |
| Boom width | 180 mm |
| Elements | 6 (reflector, driven element, 4 directors) |
| Material | 6061 anodised aluminium |
| Mounting | C4 stainless steel U-bolt mast clamp |
| Connector | N female at antenna |
| Cable | 10 m double-shielded ALSR195, N male and SMA male |
— Deployment Contexts
01
Remote telemetry and SCADA
Reliable links from sites at the edge of coverage
02
Rural alarm communicators
Directional gain where an omni cannot hold the link
03
Point to point data
14 dB front to back ratio reduces interference from behind
